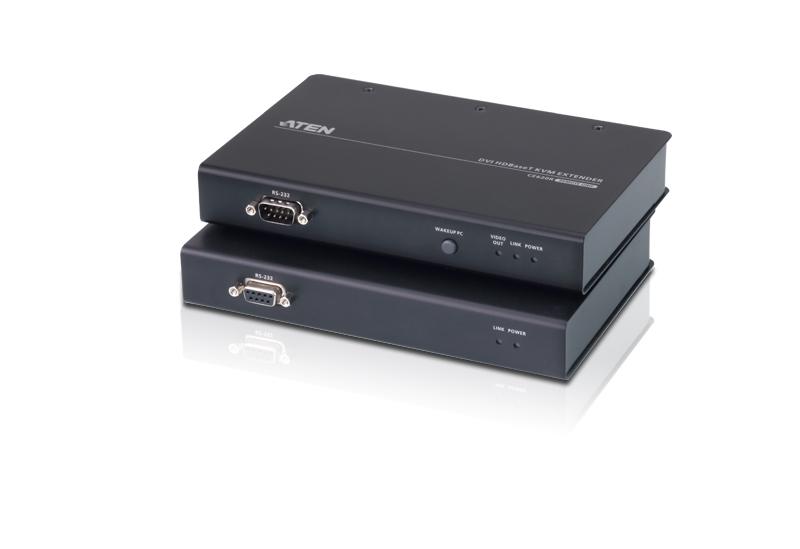

CE620 Aten USB & DVI HDBaseT 2.0 KVM Extender

£699.60 inc VAT

Aten CE620 USB 2.0 and DVI up to 100m KVM extender supports HDBaseT 2.0 technology to offer a resolution up to 1920 x 1200 @  100m, 1920 x 1080 @ 150m and integrated USB 2.0 ports — ensuring fast transmission speeds for peripherals. The Ce620 features EDID Buffer for smooth power-up and the highest quality display and enhanced bit error detection and correction to resist signal interference during high-quality video transmissions.

Data Sheet

SKU: CE620 Categories: , , , , , , , , , , , , , , , Tags: , , , , , , ,

Description

The ATEN CE620 USB DVI HDBaseT™ 2.0 KVM Extender integrates the latest HDBaseT™ 2.0 technologies to provide the most reliable transmission of video, audio, USB and RS-232 signals available on the market. The CE620 delivers high-quality DVI video, PCM 2-channel digital audio, USB 2.0 and RS-232 signals up to 100 meters from the source computer using a single Cat5e/6 cable. With a simple cable installation supporting various signals, the CE620 is ideal for applications where convenient remote access is required – in places such as transportation control centers, medical facilities, industrial warehouses and extended workstations.

    • HDBaseT™ 2.0 connectivity technology
      • Extends video, audio, USB and RS-232 signals via a single Ethernet cable
      • EDID Buffer for smooth power-up and the highest quality display
      • Enhanced bit error detection and correction to resist signal interference during high-quality video transmissions
    • Long distance superior video quality
      • HDBaseT™ Standard mode up to 1920 x 1200 @ 100 m
      • HDBaseT™ Long Reach mode up to 1920 x 1080 @ 150 m
    • Long Reach mode switch — switches between HDBaseT™ Standard and Long Reach modes in a snap
    • Integrated USB 2.0 ports — ensuring fast transmission speeds for peripherals
    • Supports 2-channel PCM digital audio — ensuring highquality audio transmissions
    • Supports PC Wakeup function via pushbutton or hotkey
    • Built-in 8KV/15KV ESD pr otection (Contact voltage 8KV; Air voltage 15KV)
      Note: The CE620 does not support HDCP.

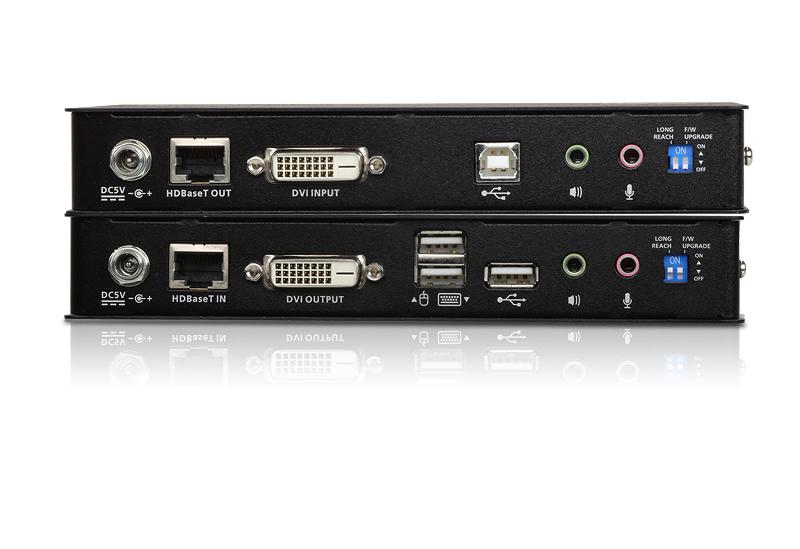

Function CE620L CE620R
Connectors
Console Ports N/A 1 x DVI-D Female (White)
3 x USB Type A Female
1 x Mini Stereo Jack Female (Green)
1 x Mini Stereo Jack Female (Pink)
KVM Ports 1 x DVI-D Female (White)
1 x USB Type B Female (White)
1 x Mini Stereo Jack Female (Green)
1 x Mini Stereo Jack Female (Pink)		 N/A
RS-232 1 x DB-9 Female (Black) 1 x DB-9 Male (Black)
Power 1 x DC Jack with locking 1 x DC Jack with locking
Unit To Unit 1 x RJ-45 Female (Black) 1 x RJ-45 Female (Black)
LEDs
Power 1 (Green) 1 (Green)
Link 1 (Orange) 1 (Orange)
Video Output N/A 1 (Orange)
Switches
Long Reach Mode Switch 1 x Slide Switch 1 x Slide Switch
Firmware Upgrade 1 x Slide Switch 1 x Slide Switch
Pushbuttons
Wakeup button N/A 1 x Push button
Video Up to 1600×1200 & 1920×1200@90m (Cat 5e) / 100m (cat 6/6a)
1080P@100m		 Up to 1600×1200 & 1920×1200@90m (Cat 5e) / 100m (cat 6/6a)
1080P@100m
Power Consumption DC5V/ 3.0W DC5V, 5.6W
Environmental
Operating Temperature 0–40°C 0–40°C
Storage Temperature -20–60°C -20–60°C
Humidity 0–80% RH, Non-condensing 0–80% RH, Non-condensing
Physical Properties
Housing Metal Metal
Weight 0.63 kg ( 1.39 lb ) 0.64 kg ( 1.41 lb )
Dimensions (L x W x H) 18.20 x 12.28 x 2.87 cm
(7.17 x 4.83 x 1.13 in.)		 18.20 x 12.28 x 2.87 cm
(7.17 x 4.83 x 1.13 in.)

  • 1x CE620L USB DVI HDBaseT 2.0 KVM Extender (Local Unit)
  • 1x CE620R USB DVI HDBaseT 2.0 KVM Extender (Remote Unit)
  • 1x Custom DVI KVM Cable Set
  • 2x Power Adapters
  • 2x Mounting Kits
  • 8x Foot Pads
  • 1x User Instructions
