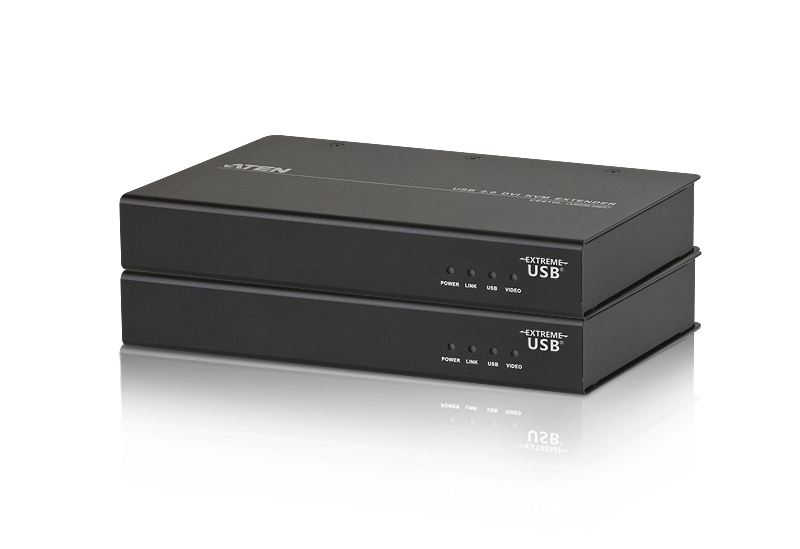

CE610A Aten USB & DVI HDBaseT KVM Extender

£899.00 inc VAT

Aten CE610A USB 2.0 and DVI up to 100m KVM extender supports ExtremeUSB® and HDBaseT technology. The USB functionality provides not only peripheral sharing but also provides support for touch panel control and file transfer. The CE610 is ideal for situations where touch panel is required, such as transportation centers, medical facilities, shopping malls, industrial kiosks and supports resolution up to 1920 x 1200 @ 60 Hz at 100m. It also features Anti-jamming – resists signal interference during high-quality video transmissions using HDBaseT technology.

Data Sheet

Manual

Description

The CE610A USB 2.0 DVI KVM Extender is a DVI and USB Extender that supports ExtremeUSB® and HDBaseT technology. The CE610A USB 2.0 DVI KVM Extender can extend DVI and USB 2.0 signals up to 300 ft (100 m) from the source using a single Cat 5e/6 cable.

The CE610A is equipped with USB connectors which allow you to extend any USB device between the units. The USB functionality provides not only peripheral sharing but also provides support for touch panel control and file transfer.

The CE610A is ideal for situations where touch panel is required, such as transportation centers, medical facilities, shopping malls, industrial kiosks, and when synchronizing for files/ folders between portable and desktop computers are required.

  • Uses a single Cat 5e cable to connect the local and remote units
  • Allows access to a computer or KVM installation from a remote console
  • Superior Video Quality – up to 1920 x 1200 @ 60 Hz at 100 m
  • Anti-jamming – resists signal interference during high-quality video transmissions using HDBaseT technology
  • ExtremeUSB® – supports transparent USB 2.0 signals and true plug-and-play (no software or drivers required)
  • USB 2.0 Support* – connects devices such as keyboard, mouse, flash drive, printer, touch panel,USB 1.1 web cameras and other USB devices which require moderate amounts of bandwidth
  • Extends local PC Video/Keyboard/Mouse to Remote side
  • Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)
  • Works with all major operating systems: Windows®, OS X®, and Linux®* Note: The CE610 supports a maximum combined USB transfer rate of 30 Mbps for attached USB devices.
Function CE610AL CE610AR

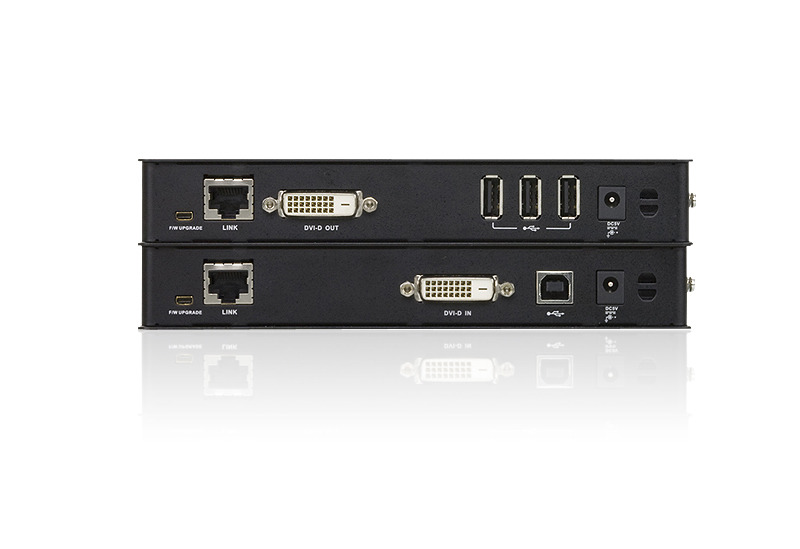

Connectors
Video In 1 x DVI-D Female (White) N/A
Video Output N/A 1 x DVI-D Female (White)
Power 1 x DC Jack 1 x DC Jack
Firmware Upgrade 1 x mini-USB 1 x mini-USB
USB Port 1 x USB Type B Female (White) 3 x USB Type A Female (White)
Unit To Unit 1 x RJ-45 Female (Black) 1 x RJ-45 Female (Black)

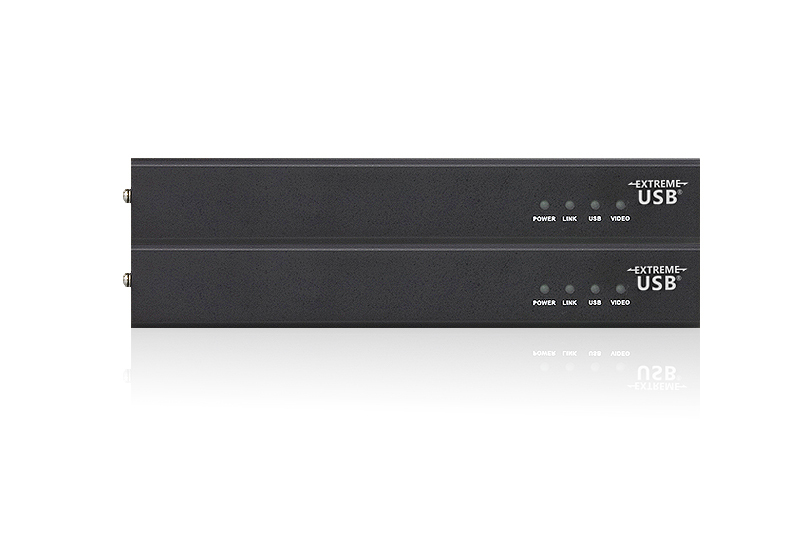

LEDs
Power 1 (Green) 1 (Green)
Link 1 (Green) 1 (Green)
USB 1 (Green) 1 (Green)
Video 1 (Green) 1 (Green)
USB USB 2.0 (Transfer Rate: Up to 40Mbps) USB 2.0 (Transfer Rate: Up to 40Mbps)
Video 1920 x 1200 @ 60Hz (100 m) 1920 x 1200 @ 60Hz (100 m)
Power Consumption DC5V:1.99W:41BTU DC5V:3.95W:50BTU
Environmental
Operating Temperature 0–40°C 0–40°C
Storage Temperature -20–60°C -20–60°C
Humidity 0–80% RH, Non-condensing 0–80% RH, Non-condensing
Physical Properties
Housing Metal Metal
Weight 0.62 kg ( 1.37 lb ) 0.62 kg ( 1.37 lb )
Dimensions (L x W x H) 18.20 x 11.79 x 2.87 cm
(7.17 x 4.64 x 1.13 in.)
18.20 x 11.79 x 2.87 cm
(7.17 x 4.64 x 1.13 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

  • 1x CE610AL DVI KVM Extender (Local Unit)
  • 1x CE610AR DVI KVM Extender (Remote Unit)
  • 1x Custom DVI 1.8m Cable
  • 1x 1.8 m USB Cable
  • 2x Power Adapters
  • 1x Mounting Kit
  • 1x User Instructions
