CE100 Aten Mini USB & VGA up to 100m CAT5 KVM Extender

£169.00 inc VAT

Aten CE100 Mini USB & VGA 100m CAT5 KVM extender supports real time DDC communication and manual compensation adjustment for better video quality.

Data Sheet

Manual

SKU: CE100 Categories: , , , , ,

Description

The CE100 USB KVM Extender with superior video quality and built-in ESD protection allows access to a computer system from a remote USB console (USB keyboard, USB mouse, and monitor).

The CE100 improves on previous designs by: 1) incorporating a compensation adjustment function at the Remote unit for greater video quality; and 2) using inexpensive Cat 5e cable, instead of bulky, expensive, standard cables, to provide a neater, more convenient, more reliable data transfer connection.

  • Extends local PC VGA/keyboard/Mouse to Remote side
  • Uses Cat 5e cable to connect the local and remote units
  • Easily add or remove computers connected to the installation
  • Supports real time DDC communication
  • Superior video quality – up to 1920 x 1200
  • Allow access to a computer from the remote console up to 100 m distance
  • Support manual compensation adjustment for better video quality
  • No external power supply needed for local unit
  • Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)
  • Wall mountable

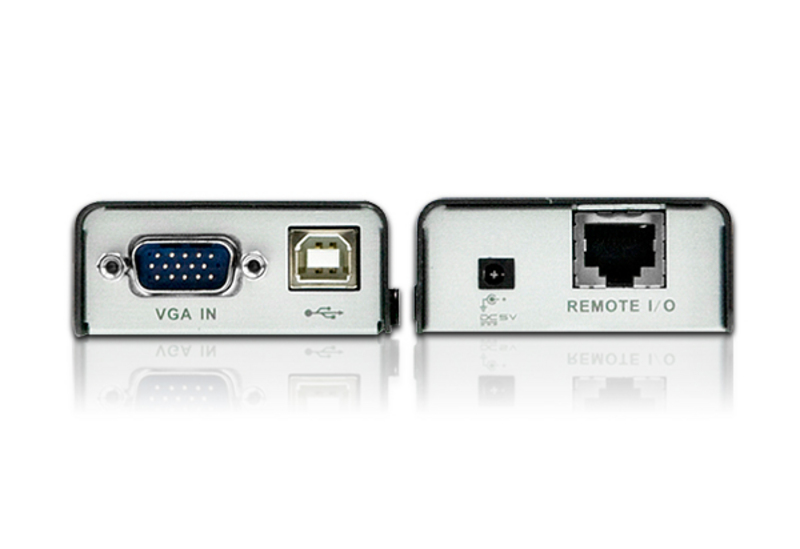

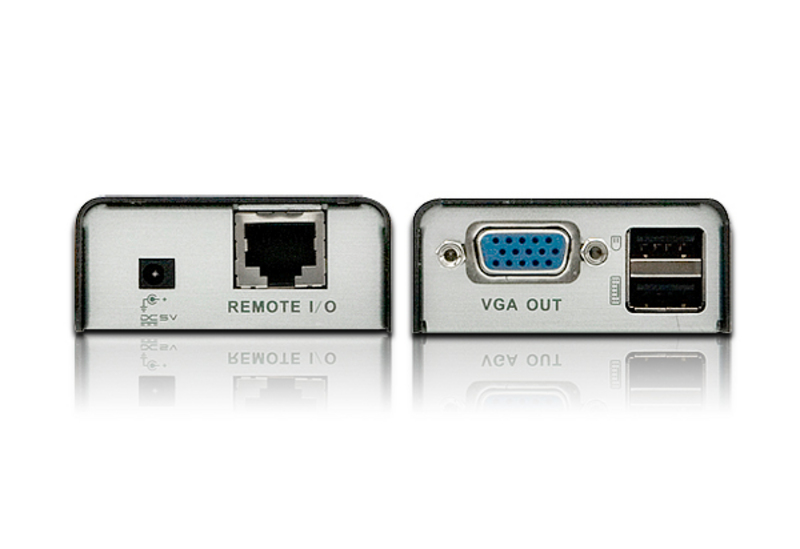

Function CE100L CE100R
Connectors Console
Ports		 Keyboard N/A 1 x USB Type A Female (White)
Video N/A 1 x HDB-15
Female (Blue)
Mouse N/A 1 x USB Type A Female (White)
KVM
Ports		 Keyboard
/ Mouse		 1 x USB Type B Female (White) N/A
Video 1 x HDB-15
Male (Blue)		 N/A
Power 1 x DC Jack
Unit to Unit 1 x RJ-45 Female (Black)
Switch N/A 1 x Knob
LEDs Link 1 (Blue)
Power 1 (Green)
Video 1920 x 1200 @ 60 Hz (30 m);
1280 x 1024 @ 60 Hz (100 m)
Power Consumption DC5V, 0.5W DC5V, 1.25W
Environment Operating Temp. 0–50°C
Storage Temp. -20–60°C
Humidity 0–80% RH, Non-condensing
Physical Properties Housing Metal
Weight 0.16 kg 0.16 kg
Dimensions
(L x W x H)		 9.10×5.74×2.40cm 9.10×5.74×2.40cm

  • 1x CE100L Mini USB KVM Extender (Local Unit)
  • 1x CE100R Mini USB KVM Extender (Remote Unit)
  • 1x USB/VGA Cable
  • 1x Power Adapter (for Remote Unit)
  • 1x Mounting Kit
  • 1x User Instructions
