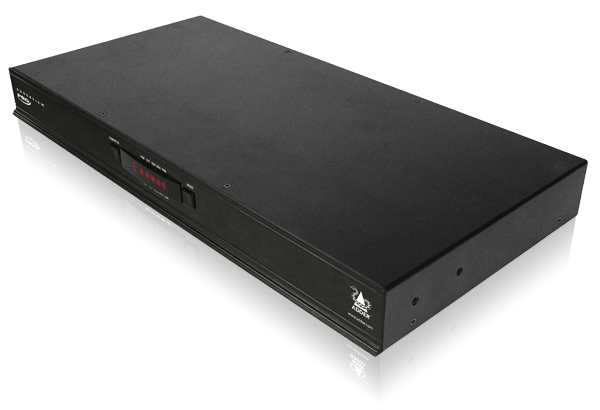

AV8PRO-DVI AdderView 8 Port USB & DVI KVM Switch

Hardware compatibility

Supports PC, RS/6000, Alpha, SGI, Sun and Apple with USB keyboard and mouse, and VGA or DVI video interfaces

Software compatibility

Operates with all known software and operating systems including Windows (all), DOS, Linux, Unix, BSD, all Sun OS, all Mac OS, NetWare etc.

Computer connections at switch

USB 2.0 type B, Dual-link DVI-I, 3.5mm stereo jack

Resolution

All resolutions up to 5MP per head (eg 2560×1920 4.92M3-R)

Local KVM console connection

Video: HDD15, Dual-link DVI-D
Keyboard/Mouse: 2 x USB type A
Switched USB: 2 x USB 2.0 type A
Audio: 3.5mm stereo jack

Other connections

Options (flash upgrade, sync with other AV8PRO-DVI and RS232 triggered power switches): DB9M

Physical design

1U high metal case 482mm/19″ (w), 215mm/8.5″ (d), 45mm/1.8″ (h)

Power

2.5mm DC jack, power adapter included; 100-240VAC 50/60Hz input to power adapter, 5VDC 4A output from power adapter

Operating temperature

0 – 40 deg C (32 to 104 deg F)

Approvals

CE, FCC

Order codes

AV8PRO-DVI-XX

XX= Mains Lead Country Code:
UK = United Kingdom
US = United States
EURO = Europe
AUS = Australia

Full Dual Link DVI-I video with extended profile DDC EDID

The ADDERView PRO features full dual link DVI video delivering 4 megapixel resolutions at 60Hz. Because the ADDERView features DVI-I, you can also use a mixture of digital and analogue sources without swapping cables. The extended DDC EDID profile ensures that the switched graphics card is always optimized to work with your screen. The dual link DVI capabilities enable users to work at very high resolutions including 2K (2048 x 1080) for film post production or WQXGA (2560 x 1600) for detailed medical imaging.

True emulation USB 2.0 technology

The AV8PRO-DVI is the first KVMA switch to feature ADDERs advanced True USB Emulation technology. Emulated USB provides an instantaneous and reliable switching action and makes keyboard hotkey and mouse switching possible. However, previous implementations have used only generic emulations and consequently have only been able to support the most basic keyboard and mouse features. ADDER’s revolutionary True Emulation technology overcomes this frustrating limitation by emulating the true character of the connected devices to all the computers simultaneously. This means that you can now use the extra keys, wheels, buttons and controls that are commonly found on modern keyboards and mice. It also means that you can use fancy keyboards that were previously not fully compatible with KVM switches.

Independent simultaneous device selection

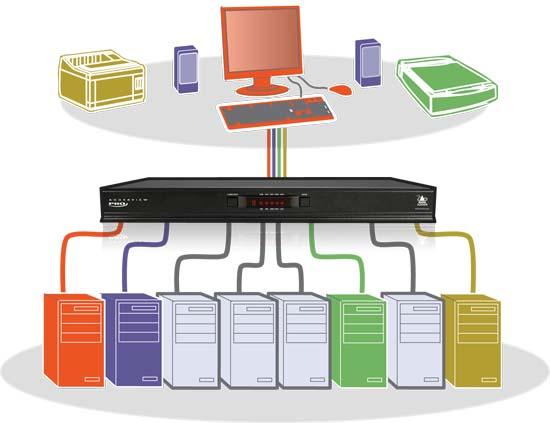

Flexibility is key to the ADDERView PRO. The switch enables you to use the KVMA console to work on one computer whilst your USB peripherals are connected to other computers and your speakers are playing music from yet another. You can choose how the switching action works by selecting different switching modes from the On-Screen-Display. Furthermore, the OSD shows you visually which peripheral is connected to which computer so it’s easy to remain in full control.

Keyboard, mouse or OSD channel selection

The ADDERView PRO can be switched using selectable keyboard hotkeys, 3 button mice or the front panel controls. An advanced OSD function is also provided that enables you to name and select computers with ease and configure the PRO’s operation. Some high resolution professional screens will only display native resolutions and so the ADDERView automatically senses the display’s preferred resolution to ensure that the OSD is always displayed in the best way. This feature is a must have to ensure compatibility with high end display devices.

Broad USB 2.0 Hi Speed device support

A vast range of USB devices can be connected to the ADDERView. From non standard human interface devices to printers and scanners. This gives great flexibility. For example, you could be scanning a set of documents onto one computer whilst working on another and printing from yet another, all at the same time. The USB 2.0 switching action has been carefully engineered to ensure maximum computer reliability when connecting and disconnecting USB devices.

RS232 port for control, synchronization and upgrade

An RS232 interface enables the AV8PRO-DVI to be remotely switched using simple ASCII codes. When the channel is switched, the same ASCII codes are echoed to the RS232 port and so, by linking RS232 ports, two or more units can be switched in synchrony to create a multi video head switching system. The serial port enables a 4 (RC4) or 8 (RC8) button switch unit to be used with the ADDERView. The same RS232 port can also be used to upgrade the firmware to guarantee your hardware investment continues to deliver real value well into the future
