AV8OSDE AdderView 8 Port PS2 & VGA KVM Switch

Description

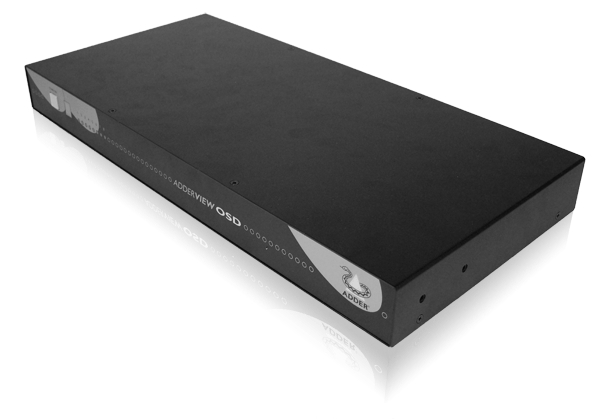

Supporting up to eight computers in a single box solution, and allowing multiple units to be cascaded together, ADDERView AV8OSDE offers exceptional value for money. An intuitive On Screen Display selection menu is provided allowing you to name all your computers individually. This makes channel selection easy as you no longer have to remember a channel number, just connect by selecting a name!

In addition to the ADDERView desktop features, ADDERView AV8OSDE also provides an expansion port that allows remote control operation of the switch. ADDERView AV8OSDE is a desktop switch but an optional rack mount kit is also available. A multi-function numeric LED display shows you the channel that you are currently connected to, data activity and the power status of the switch.

Features

Self Powered
Channel selection: On Screen Display, keyboard hot-key or frony panel key, RS232 serial or optional RC1 remote control.
Front panel key
Front panel display LEDs
Auto-scan
Hot-key
Automatic mouse conversion
IBM ThinkPad compatible
Maintenance mode
EMC: 89/336/EEC CE marked.
LVD: 73/23/EEC

Specifications

AV4OSDE Model: 1 Shared keyboard, monitor and mouse to 4 CPUs.
AV8OSDE Model: 1 Shared keyboard, monitor and mouse to 8 CPUs.

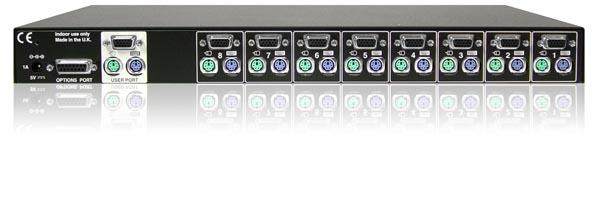

Connectors

AV4OSDE Model:
4 x 15 way HDD Female for CPU video.
4 x 6 way mini DIN Female for CPU keyboard.
4 x 6 way mini DIN Female for CPU mouse.

AV8OSDE Model:
8 x 15 way HDD Female for CPU video.
8 x 6 way mini DIN Female for CPU keyboard.
8 x 6 way mini DIN Female for CPU mouse.

Both Models

1 x 6 way mini DIN Female for shared keyboard.
1 x 6 way mini DIN Female for shared mouse.
1 x 15 way HDD Female for shared monitor.
1 x 5V dc power inlet for optional PSU.
1 x 15 way D Female options port for optional RC1 remote control unit and RS232 control.

Features

AV4OSDE Model: 1 Shared keyboard, monitor and mouse to 4 CPUs.
AV8OSDE Model: 1 Shared keyboard, monitor and mouse to 8 CPUs.

Connectors

AV4OSDE Model:
4 x 15 way HDD Female for CPU video.
4 x 6 way mini DIN Female for CPU keyboard.
4 x 6 way mini DIN Female for CPU mouse.

AV8OSDE Model:
8 x 15 way HDD Female for CPU video.
8 x 6 way mini DIN Female for CPU keyboard.
8 x 6 way mini DIN Female for CPU mouse.

Both Models

More Information

Self powered

The unit conveniently draws its power from the connected CPUs along the keyboard cable. Power LED confirms sufficient power is available for reliable operation. High video quality – Screen resolution of up to 1900 x 1440 supported.

Channel selection

Convenient switching using On Screen Display selection menu, keyboard hot-key or front panel key, RS232 serial or optional RC1 remote control accessory.

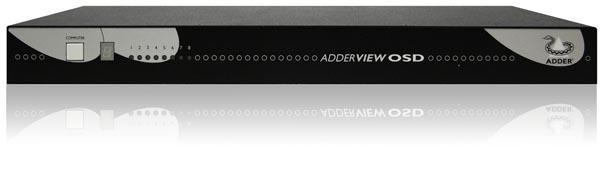

Front panel key

Used for selecting channels manually.

Front panel display LEDs

Seven segment LED display shows the currently selected channel and keyboard or mouse activity.

Auto-scan

The ADDERView OSD can be set to automatically scan all ports.

Hot-key

Commands can be used to select channel.

Automatic mouse conversion

PS/2, IntelliMouse and RS232 type mice are all supported between switch and CPUs. Controlling mouse/trackball can have a wheel but must be PS/2 type (check with your supplier to confirm compatibility).

IBM ThinkPad compatible

Tested with ThinkPad (mouse and keyboard ) splitter cable and docking station.

Maintenance mode

Keyboard, mouse and ADDERView reset feature.

Physical (both models)

All metal case 220 x 440 x 44mm apprx.

Power

Self powered operation NOTE: Maximum cable length for self powered operation is 5 meters from CPUs. Optional universal PSU (part no: PSU-IEC-5VDC) may be required for certain applications.

EMC

89/336/EEC CE marked.

LVD

73/23/EEC.
