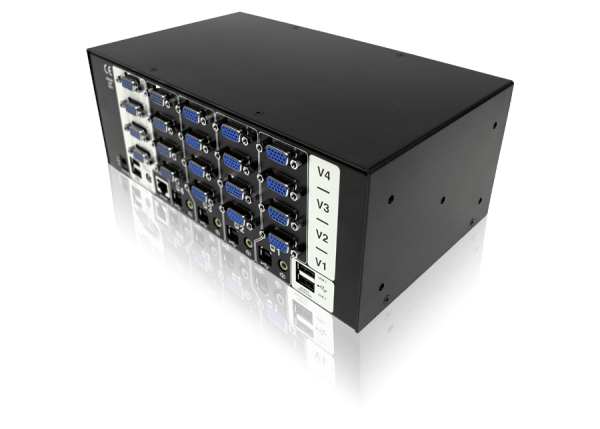

AV4PRO-VGA-TRIPLE Adder 4 Port USB & Triple VGA Display

Hardware Compatibility

All computers with USB interfaces

Software Compatibility

Operates with all known software and operating systems including
Windows (all), DOS, Linux, Unix, BSD, all Sun OS, all Mac OS, NetWare etc.

Computer Connections at Switch

USB 2.0 type B, Hi Res VGA (up to 4 per connection), 3.5mm stereo jack

Local KVM Console Connection

Video: VGA (Dual x 2, Triple x 3 or Quad x 4)
Keyboard/Mouse: 2 x USB type A
Switched USB: 2 x USB 2.0 type A. Supports USB 2.0 devices in low, full and high speed modes.
USB True Emulation: Emulates keyboard and mouse on each port. Low speed HID USB 2.0 devices supported
Audio: 3.5mm stereo jack
Other Connections: Options (flash upgrade, sync with other AV4PRO-DVI-MS and RS232 triggered power switches): Modular 10P10C

Physical Design

2.5U high metal case 260mm (w), 150mm (d), 100mm (h)

Power

2.5mm DC jack (power adapter included), 100-240VAC 50/60Hz input to power adapter, 5VDC 2A output from power adapter

Operating Temperature

0 to 40 deg C / 32 to 104 deg F

Approvals

CE, FCC

High Definition VGA with extended profile DDC EDID

The ADDERView Pro MultiScreen features high resolution VGA video with extended profile DDC EDID. The extended DDC EDID profile ensures that the switched graphics card is always optimised to work with your screen.

True Emulation USB 2.0 Technology

The AV4PRO-VGA-MS belongs to the first KVMA range of switches to feature Adder’s advanced USB True Emulation technology. Emulated USB provides an instantaneous and reliable switching action and makes keyboard hotkey and mouse switching possible. Previous implementations have used generic emulations and consequently have only been able to support the most basic keyboard and mouse features. Adder’s revolutionary True Emulation technology overcomes this frustrating limitation by emulating the true character of the connected devices to all the computers simultaneously. This means that you can now use the extra function keys, wheels, buttons and controls that are commonly found on modern keyboards and mice. With the AV4PRO-VGA-MS, a whole new group of users can take advantage of the flexibility KVM switches have to offer. Users in Architecture, Graphic Design, Post Production, Animation, Medical Imaging etc. often need to use specialised interface devices such as graphics tablets, 3D explorers, joysticks, and so on. The AV4PRO-VGA-MS makes all this possible.

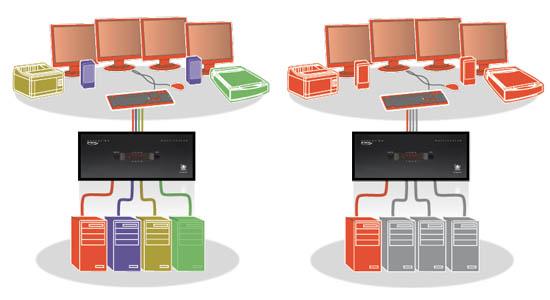

Independent Simultaneous Device Selection

Flexibility is key to the ADDERView Pro. The switch enables you to use the KVMA console to work on one computer whilst your USB peripherals are connected to other computers and your speakers are playing music from yet another. You can of course still switch all connected devices to any one of the connected computers as with any other KVM switch.

Channel Selection options

The ADDERView Pro can be switched using selectable keyboard hotkeys, 3 button mice or the front panel controls. Optionally, you can also use the RC4 remote switch to make your selection.These switching options allow you to rapidly reasign connected devices to any of the connected computers.

Broad USB 2.0 Hi Speed Device Support

A vast range of USB devices can be connected to the ADDERView Pro, from non standard human interface devices to printers and scanners. This gives great flexibility. For example, you could be scanning a set of documents onto one computer whilst working on another and printing from yet another, all at the same time. The USB 2.0 switching action has been carefully engineered to ensure maximum computer reliability when connecting and disconnecting USB devices.

Options port for Control, Synchronisation and Upgrade

An ‘Options’ port enables the AV4PRO-VGA-MS to be remotely switched using simple ASCII codes. When the channel is switched, the same ASCII codes are echoed to the ‘Options’ port and so, by linking ‘Options’ ports, two or more units can be switched in synchrony to switch more than 4 video heads. The port enables a 4 button switch unit (RC4) to be used with the ADDERView Pro. The same port can also be used to upgrade the firmware to guarantee that your hardware investment continues to deliver real value well into the future.
