Dual link DVI-I with extended profile DDC EDID
The AdderView Pro features full dual link DVI video delivering 4 megapixel resolutions at 60Hz. Because the AdderView features DVI-I, you can also use a choice of digital or analogue sources. The extended DDC EDID profile ensures that the switched graphics card is always optimised to work with your screen. The dual link DVI capabilities enable users to work at very high resolutions including 2K (2048 x 1080) for film post production or WQXGA (2560 x 1600) for detailed medical imaging.
True Emulation USB 2.0 technology
The AV4PRO-DVI belongs the first KVMA range of switches to feature Adder’s advanced True USB Emulation technology. Emulated USB provides an instantaneous and reliable switching action and makes keyboard hotkey and mouse switching possible. However, previous implementations have used only generic emulations and consequently have only been able to support the most basic keyboard and mouse features. Adder’s revolutionary True Emulation technology overcomes this frustrating limitation by emulating the true character of the connected devices to all the computers simultaneously. This means that you can now use the extra function keys, wheels, buttons and controls that are commonly found on modern keyboards and mice. With the AV4PRO-DVI, a whole new group of users can take advantage of the flexibility KVM switches have to offer. Users in Architecture, Graphic design, Post production, Animation etc. often need to use specialised interface devices such as graphics tablets, 3D explorers, joysticks, and so on. The AV4PRO-DVI makes all this possible using Adder’s True Emulation technology.

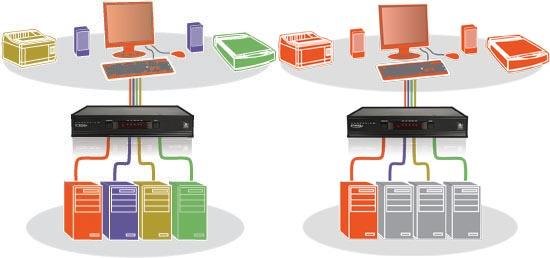

Independent simultaneous device selection
Flexibility is key to the AdderView Pro. The switch enables you to use the KVMA console to work on one computer whilst your USB peripherals are connected to other computers and your speakers are playing music from yet another. You can of course still switch all connected devices to any one of the connected computers as with any other KVM switch.
Channel selection options
The AdderView Pro can be switched using selectable keyboard hotkeys, 3 button mice or the front panel controls. Optionally, you can also use the RC4 remote switch to make your selection.These switching options allow you to rapidly reasign connected devices to any of the connected computers.
Broad USB 2.0 Hi Speed device support
A vast range of USB devices can be connected to the AdderView. From non standard human interface devices to printers and scanners. This gives great flexibility. For example, you could be scanning a set of documents onto one computer whilst working on another and printing from yet another, all at the same time. The USB 2.0 switching action has been carefully engineered to ensure maximum computer reliability when connecting and disconnecting USB devices.
Options port for control, synchronisation and upgrade
An ‘Options’ port enables the AV4PRO-DVI to be remotely switched using simple ASCII codes. When the channel is switched, the same ASCII codes are echoed to the ‘Options’ port and so, by linking ‘Options’ ports, two or more units can be switched in synchrony to create a multi video head switching system. The port enables a 4 button switch unit (RC4) to be used with the AdderView Pro. The same port can also be used to upgrade the firmware to guarantee that your hardware investment continues to deliver real value well into the future.
