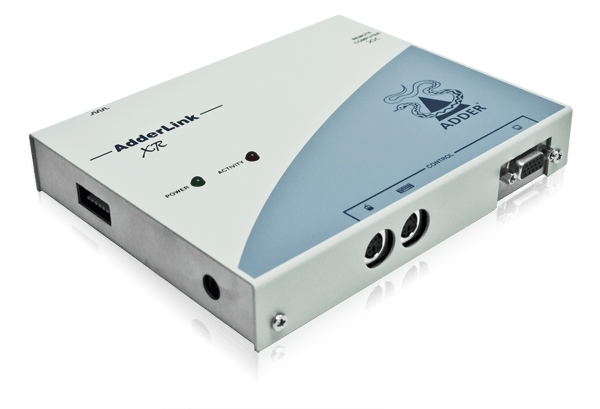

Video resolutions
1600 x 1280 at distances up to 100 metres/330 feet, 1024 x 768 at distances up to 200 metres/650 feet.
Extension distance
Up to 200 metres / 650 feet using CATx cable (x=5,5e,6,7)
Extension technology
Differential analogue signalling for video signals, differential digital signalling for PS/2 keyboard, PS/2 mouse, RS232. Signals are multiplexed so that only one CATx cable is required.
Devices supported
Supports PS/2 style keyboard, PS/2 style mouse, flat-screen and CRT style monitors with standard HD-15 video connectors. Also extends a transparent RS232 connection that may be used for touch-screens or a wide variety of other serial devices.
Video compensation
Adjustable video compensation amplifiers enable the video sharpness to be adjusted using the keyboard. Coarse and fine adjustment control is provided for quick setup. Settings are persistent even when the ADDERLink is powered off which means that setup only needs to be done once. Brightness adjustment is automatic.
Keyboard control
The cable equalisation is controlled in ‘configuration mode’ using the keyboard attached to the remote (KVM console-end) unit. Configuration mode is accessed using keyboard hotkeys. These hotkeys may also be used to lock the remote unit (if a password has been set). Hotkeys are variable and may be disabled if required. Feedback is provided to the user using the keyboard num, caps and scroll lights.
Indicators
The remote and local units are fitted with a link/activity indicator that shows the link status and indicate keyboard and mouse data activity.
Computer / KVM switch compatibility
Compatible with desktop, rack mount and laptop PCs with PS/2 keyboard and mouse connections. May also be used with RS/6000, Alpha and SGI computers and a wide range of KVM switches. ADDER can provide a range of KVM switch and conversion cables for connection to PC, Sun and Macintosh computers that have USB or Sun (8-pin) connectors.
Operating system compatibility
Compatible with all major operating systems including DOS; OS/2; UNIX; MS Windows 9x, NT, 2000, XP; NetWare and RS6000.
Keyboard support
Supports PS/2 style keyboards with 6-pin mini-DIN connectors. Operates in modes, 1, 2 and 3 and supports individual typematic states per key. Supports standard layout keyboards and enhanced ‘Internet style’ keyboards with extra keys. Supports all keyboard language layouts.
Mouse support
Supports a wide range of PS/2 style 2 button, 3 button, wheel, IntelliMouse (3 button with wheel), IntelliMouse Explorer (5 button with wheel) and other mice that support the Microsoft ® mouse signalling protocols.
RS232
‘Transparent’ serial port operation ensures wide device compatibility without the need to configure baud rates or protocols on the ADDERLink to match your equipment. Auto baud rate sensing ensures that devices that switch baud rates (such as some touch screens) are supported. All handshake lines are supported for maximum compatibility. Baud rates of 1200 and 9600 are supported.
Rack mount options
Both the local (computer-end) and remote (KVM console-end) units may be rack mounted in the ADDERLink rack mount chassis. This optional chassis enables 2 units to be mounted in 1U of 19-inch rack space.
Connectors (Local computer-end unit)
1 x 6-pin mini-DIN female keyboard connector
1 x 6-pin mini-DIN female mouse connector
1 x 15-pin high-density D-type female connector for monitor connection
1 X 9 pin D type female for serial connection
1 x RJ45 connector for CATx cable connection
2.5mm DC jack for optional power adapter (only required for video only applications)
Connectors (Remote console-end unit)
1 x 6-pin mini-DIN female keyboard connector
1 x 6-pin mini-DIN female mouse connector
1 x 15-pin high-density D-type female connector for monitor connection
1 X 9 pin D type male for serial connection
1 x RJ45 connector for CATx cable connection
2.5mm DC jack for power adapter
Physical (Local computer-end unit)
Metal case (steel and stainless steel), 168mm x 136mm x 27mm, 526g
Physical (Remote console-end unit)
Metal case (steel and stainless steel 168mm x 136mm x 27mm, 526g
Power
The console-end unit is powered by an external 5V DC, 2A power supply with an IEC power cable connection. A country specific power cord is provided. The computer-end unit is normally interface powered via the PS/2 keyboard connection but may alternatively be powered using an optional power supply. Both units are fused with auto resettable fuses.
Password protection mode
The ADDERLink may be locked using a hotkey combination from the keyboard if a password has been loaded into the unit. The unit may then only be unlocked using the password. The video is blanked whilst the remote unit is locked.
Application
The ADDERLink is not suitable for linking between buildings.
Package contents
Local (computer-end) unit, remote (KVM console-end) unit, IEC style power supply and power cord, safety and installation leaflet, CD manual, stick on rubber feet.
Optional accessories
Optional power adapter for local unit (part code: PSU-IEC-5VDC)
Approvals
FCC class A, CE marked
Power
Operating Voltage: 100-240VAC, Power Frequency: 50-60Hz, Usage: 5VDC at 500mA
Temperature Tolerance
0 – 40 deg C (32 to 104 deg F)
Humidity Tolerance
5 to 60% non condensing
