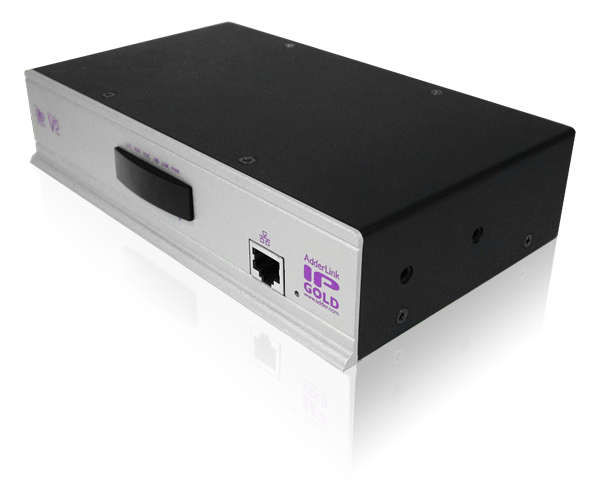

ALIP-GOLD Adder PS2 USB & DVI Single KVM Over IP

£1,194.00 inc VAT

Adder ALIP-GOLD PS2 / USB & DVI standalone KVM over IP offers CD quality audio signals, Virtual media support using USB and dual power connection. It does not need any software to be loaded on your servers and is easy to set up and uses Real VNC client software that, unlike HTTPS web browsers, is designed for secure, high performance KVM over IP applications.

Data Sheet

Manual

Description

High performance KVM over IP delivered by the ADDERLink ALIP-Gold adds support for DVI, audio and Virtual Media as well as USB keyboard and mouse control to the KVM over IP package.

The ADDERLink IP Gold adds support for digital video, audio over IP, USB keyboard and mouse and virtual media support to the ADDERLink IP family. Providing remote keyboard, video, mouse, and audio access via IP to your current KVM switch, the ADDERLink IP Gold allows management of your computers from anywhere in the world securely and remotely via the Internet, dial-up link or corporate network.

The ADDERLink ALIP-Gold doesn’t need any software to be loaded on your servers and is easy to set up and use. The ADDERLink ALIP-Gold uses Real VNC client software that, unlike HTTPS web browsers, is designed for secure, high performance KVM over IP applications. The ADDERLink ALIP-Gold integrates with your existing KVM infrastructure to provide a cost effective global management tool.

  • Auto sensing digital or analogue video interface
  • Aduo-vis-IP
  • Dual power connections
  • USB keyboard and mouse connections
  • Virtual media support (via USB)
  • High performance video

Video modes

Support standard PC, Sun and Mac video modes up to resolutions of 1600 x 1200 with scalable viewer

Hardware compatibility

Supports PC, RS/6000, Alpha and SGI computers using PS/2 or USB, Apple USB or Sun USB & 8-pin styles (8-pin style when using the appropriate CCSUN interface cables). Compatible with most KVM switches.

O/S compatibility

All known software and operating systems including Windows (all), DOS, Linux, Unix, BSD, Sun OS, Solaris, Mac OS, Netware etc.

AdderLink IP to KVM/computer connection

Video: DVI-I Keyboard/Mouse: MiniDin6 or USB type B

Local console

Video: DVI-I Keyboard/Mouse: MiniDin6 or USB type A

Connections

Ethernet: RJ45 10/100 auto sensing
Serial: 2 x DB9 (power control and modem)
Virtual media: USB type B

Physical design

1U compact case, robust metal construction. 198mm/7.92″ (w), 44mm/1.76″ (h), 120mm/4.8″ (d), 0.75kg/1.65lbs.
1 unit per 1U or 2 units per 1U rack mount kits available

Power supply

100 – 240 VAC, 50 – 60 Hz

Operating temp.

0 – 40 deg C (32 to 104 deg F)

Approvals

CE, FCC

Order Codes

ALIP-GOLD-XX

XX= Mains Lead Country Code:
UK = United Kingdom
US = United States
EURO = Europe
AUS = Australia



Additional accessories

Single unit rack brackets (includes four screws): RMK-ALIP
Double unit rack brackets (includes twelve screws): RMK-ALIP-DUAL
KVM cable set (available 2M and 5M): VKVM-2M; VKVM-5M
DVI-I to analogue VGA adapter: VSA11
SUN style KVM cable: CCSUN-2M

Auto sensing digital or analogue video interface

The use of DVI-I interfaces overcomes the limitations of analogue video and allows for greatly improved video update and pixel-perfect performance. However, where no digital feed is available the ADDERLink IP Gold will auto sense and support an analogue input.

Audio-via-IP

The ADDERLink IP Gold enables CD quality audio signals to be fed from the target computer to the remote user via IP. Essential for administration tools and applications where sound or audible alarms are used.

Dual power connections

To ensure maximum uptime and connection stability the ADDERLink IP Gold has dual power supply facilities allowing for both mains and UPS supply.

USB keyboard and mouse connections

Many PCs and multi platform environments demand that USB is used for keyboard and mouse connections. The ADDERLink IP Gold provides this for both the local console and computer/KVM connection. PS/2 keyboard and mouse connections are also supported.

Virtual media support (via USB)

To transfer files from the remote user to the controlled computer, the ADDERLink IP Gold has been engineered to act as a conduit through which data can be passed. Files can be transferred via IP on to the ADDERLink IP Gold and on to the target computer by means of a virtual media port (USB).

High performance video

Hardware improvements and a significant increase in processor speed means that the video update performance is greatly increased and Adder’s advanced anti-aliasing strategy further reduces screen degradation when colours on the screen change very slowly.
