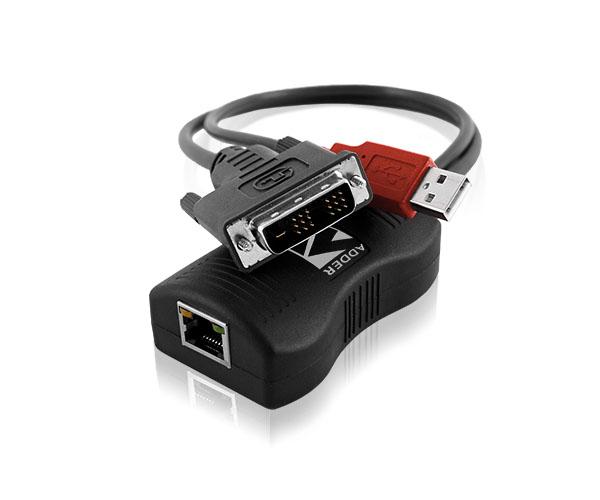

ALDV120T Adder AV Digital DVI Transmitter Only

Hardware compatibility

All computers with DVI-D and USB connections – requirement dependent

DVI-D interface

The system supports resolutions such as 480p, 720p, 1080P or WUXGA (1920 x 1200) @ 60Hz* and 24 bit color depth
* with reduced blanking

Software compatibility

All known operating systems

Computer connections at transmitter (TX)

DVI-D male, USB type A (for power only)

Display connections at receiver (RX)

DVI-D male

Power

USB powered, 5VDC -2.5W for both RX and TX units combined

Physical design

Injection moulded ABS cases:
45mm / 1.8’’ (w) x 63mm / 2.5’’(d) x 21mm / 0.8’’(h) with 30cm / 12” pigtails, Weight 250g / 0.6 lb per pair

Operating temperature

0 to 40ºC / 32 to 104ºF

Approvals

CE, FCC



Important extension distance Information

Recommended cables are CAT7 shielded foiled twisted pairs:

Daetwyler 7702 Flexible patch cable
Daetwyler 7120 Bulk cable

Category 6 (or better) shielded twisted pair cable must be used to connect the local and remote units in order to maintain compliance with radio frequency energy emission regulations and ensure a suitably high level of immunity to electromagnetic disturbances.

Resolution	Frequency	Patch Connections	Cable Type	Distance
1920×1200	60Hz	0	CAT7	50 metres
1920×1200	60Hz	0	CAT6a (shielded)	50 metres
1920×1200	60Hz	2	CAT6a (shielded)	40 metres
1920×1200	60Hz	2	CAT7	40 metres

Note: Distances are achieved using single lengths of trunk/bulk cable. For each break/patch connection reduce distance by 5 meters. Preferably patch cables should be of type CAT7 and less than 2 meters. Patch cables over 2 meters must be CAT7.

Pixel perfect digital video

The ALDV120 uses an uncompressed communication system whereby the pixels of every frame are sent without loss.  Resolutions up to 1920 x 1200 @ 60Hz (WUXGA) are supported.

Up to 50 meters over a single CATx cable

Video and power pass along a single cable, providing a maximum of 50 meters extension. The actual achievable extension distance is dependent upon the CATx cable type used and the number of connection breaks for patch panels and wall plates. Please see the table on reverse for details.

Highly energy efficient – No external power supplies are required

The AdderLink DV120 is designed to be highly power efficient, using less than an eighth of the power required by some competing systems. By harvesting power from a standard USB socket, no external PSUs are needed and hence the support infrastructure required is kept to an absolute minimum.

EDID management

The system has intelligent EDID management to allow the true characteristics of the monitor to be passed back to the computer.

Plug and Play

The AdderLink DV120 extenders are delivered in a zero config state so you can connect their two units and start working with them immediately. There’s no need for drivers or software to be installed.

Perfect video wall companion

With locking connectors and no power supplies required at the receiver, the ALDV120 makes a perfect companion for video walls where the controller must be located far from the screens.

Built to last

Adder Technology have a well-earned reputation for creating products that perform well and stay the course. The AdderLink DV120 is no exception and features tough, yet lightweight ABS enclosures to ensure they can easily withstand everyday treatment. The internal components and external connectors too are selected for their reliability in addition to their performance characteristics.
