ALDV100P Adder AV Digital HDMI Extender Pair

£349.00 inc VAT

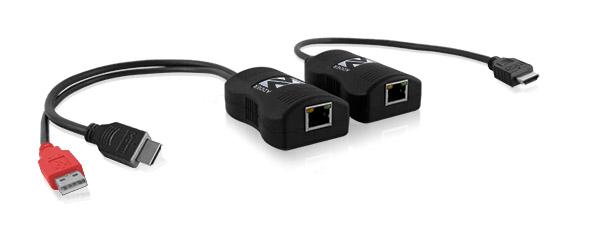

Adder ALDV100P HDMI over CATx up to 50m extender (Pair) uses an uncompressed communication system whereby the pixels of every frame are sent without loss. Resolutions up to 1920×1200 @60Hz (WUXGA) are supported. You can mix-n-match The whole AdderLink DV family of extenders share a common advantage of cross connection. The HDMI transmitters (ALDV100T) of the family can seamlessly be connected to the DVI-D receivers (ALDV120R) and vice versa.

Data Sheet

Manual

SKU: ALDV100P Categories: , , , , , , , , , Tags: , , , , , ,

Description

ADDERLink ALDV100P (Pair) is part of an easy to install, highly compact video extender system that can transmit an HD video stream with audio over a single CATx cable. This enables you to locate your media playback hardware in a secure and temperature controlled environment. Thus your valuable systems are kept safely away from the display point environment whilst maintaining precisely the same user experience.

AdderLink ALDV100P extender is delivered in a zero config state so you can connect and start working straight away. There’s no need for drivers or software to be installed.

ADDERLink ALDV100P extender is ideally suited to the Digital Signage (DOOH – Digital Out-Of-Home) and Audio Visual (AV) industries.

Features

  • Pixel perfect digital video up to 1920 x 1200 @ 60Hz
  • Up to 50m over a single CATx cable
  • Highly energy efficient – No external power supplies are required
  • Digital audio
  • EDID management
  • Plug and Play
  • Built to last

Specifications

Hardware compatibility

All computers with HDMI connections

HDMI interface

The system supports resolutions such as 480p, 720p, 1080P or WUXGA (1920×1200) @60Hz* and 24 bit color depth.
* with reduced blanking

Software compatibility

All known operating systems

Audio

The system delivers eight channels of HDMI audio with sample sizes of 16, 20 or 24 bit at 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, or 192kHz.

Computer connections at transmitter (TX)

HDMI type A male, USB type A (for power only)

Display connections at receiver (RX)

HDMI type A male

Physical design

Injection moulded ABS cases:
45mm / 1.8’’ (w) x 63mm / 2.5’’(d) x 21mm / 0.8’’(h) with 30cm / 12” pigtails. Weight 250g / 0.6 lb per pair.

Power

USB powered, 5VDC -2.5W for both RX and TX units combined.

Operating temperature

0 to 40ºC / 32 to 104ºF

Approvals

CE, FCC

Important extension distance Information

Recommended cables are CAT7 shielded foiled twisted pairs:

  • Daetwyler 7702 Flexible patch cable
  • Daetwyler 7120 Bulk cable

Category 6a (or better) shielded twisted pair cable must be used to connect the transmitter and receiver units in order to maintain compliance with radio frequency energy emission regulations and ensure a suitably high level of immunity to electromagnetic disturbances.



Resolution Frequency Patch Connections Cable Type
 Distance
1920×1200 60Hz 0 CAT7a 50 metres
1920×1200 60Hz 0 CAT6a (shielded) 50 metres
1920×1200 60Hz 2 CAT6a (shielded) 40 metres
1920×1200 60Hz 2 CAT7a 40 metres

Note: Distances are achieved using single lengths of trunk/bulk cable. For each break/patch connection reduce distance by 5 meters. Preferably patch cables should be of type CAT7 and less than 2 meters. Patch cables over 2 meters must be CAT7.

More Information

Pixel perfect digital video

ALDV100 uses an uncompressed communication system whereby the pixels of every frame are sent without loss. Resolutions up to 1920×1200 @60Hz (WUXGA) are supported. Additionally, the High-bandwidth Digital Content Protection (HDCP) of the HDMI standard is supported.

Up to 50 meters over a single CATx cable

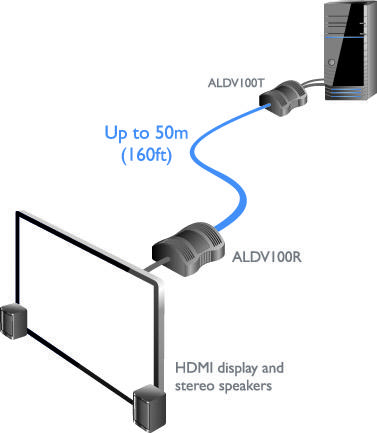

Video, audio and power all pass along a single cable, providing a maximum of 50 meters extension. The actual achievable extension distance is dependent upon the CATx cable type used and the number of connection breaks for patch panels and wall plates. Please see the table on reverse for details.

Highly energy efficient – No external power supplies are required

The AdderLink DV100 is designed to be highly power efficient, using less than an eighth of the power required by some competing systems. By harvesting power from a standard USB socket, no external PSUs are needed and hence the support infrastructure required is kept to an absolute minimum.

Digital audio

Supports eight channels of HDMI audio. Mix-n-match The whole AdderLink DV family of extenders share a common advantage of cross connection. The HDMI transmitters (ALDV100T) of the family can seamlessly be connected to the DVI-D receivers (ALDV120R) and vice versa.

EDID management

The system has intelligent EDID management to allow the true characteristics of the display to be passed back to the computer.
