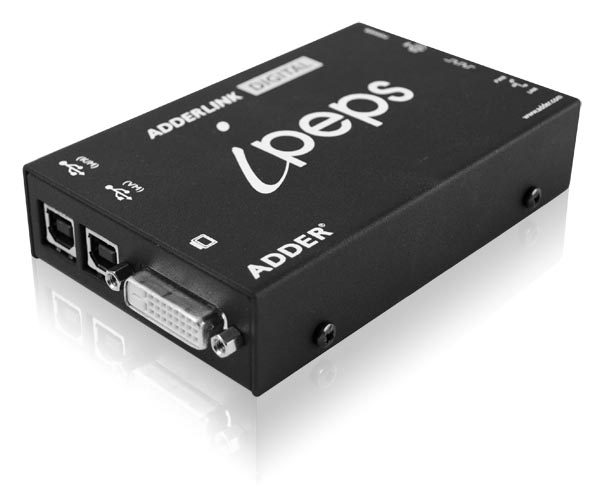

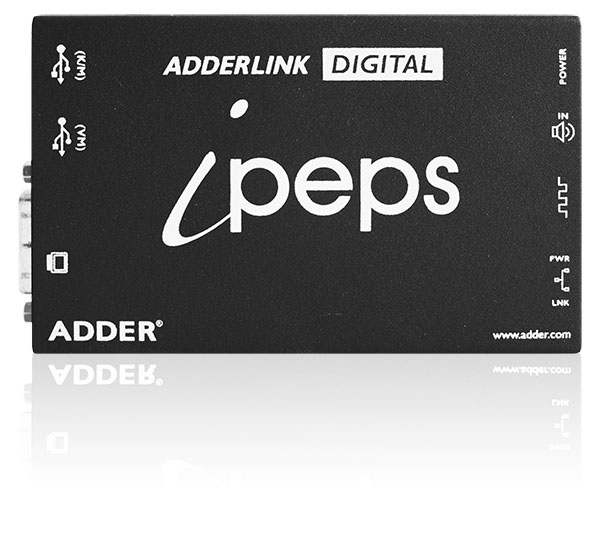

ALD-IPEPS Adder USB & DVI Single KVM Over IP

Video resolutions

Supports standard PC or Mac video modes up to resolutions of 1920×1200 with scalable viewer.

O/S compatibility

All known software and operating systems including Windows (all), DOS, Linux, Unix, BSD, Sun OS, Solaris, Mac OS, NetWare, etc.

Physical Connections

Video: DVI Single link USB 2.0 Type B connectors
Ethernet: RJ45 10/100 auto sensing
RS232: 6p6c connector

Physical design

Compact case, robust metal construction.
120mm/4.72” (w), 27mm/1.06” (h), 75mm/2.95” (d), 0.34kg/0.76lbs.

Power supply

Interface powered via two USB cables
Externally powered from 100-240VAC, 47/63Hz- 5v – 2.5amp

Operating temperature

0 – 40 deg C / 32 – 104 deg F

Approvals

CE, FCC

Order codes

Additional accessories

VSC22: 1 x 3m 3.5mm jack audio cable
VSC24: 2 x 2m USB A to B cable
VSC45: 1 x 6P6C Plug to 9W Male D type 0.5m Serial cable
VSCD1: 1 x 2m Single link DV1 cable
PSU-IEC-5VDC-2.5A: 1 x 100/240V 50/60Hz input – 5V 12.5W O/P PSU
X-RMK-Fascia: Fascia plate for mounting in X-series rack

Digital Video Inputs

The Adderlink Digital ipeps will accept any single link DVI input up to 1920×1200 resolution. It can also be attached to computers with DisplayPort DP++ (Dual-Mode) or HDMI with converter cables enabling access to any computer with a digital video interface.

Independent operation

The Digital ipeps gives full control even during boot up, BIOS level or computer crash states, it will even work even if the controlled devices are not operational.

High video performance

The AdderLink Digital ipeps can be accessed by a standard web browser but for superior graphical performance, a Real VNC viewer should be used. Free of the limitations of HTTPS, Real VNC greatly enhances video performance.

Highly secure plus support for IPV6 addresses

Employing enterprise grade security (using AES 128 bit encryption and RSA 2048 bit public key authentication) as standard, the AdderLink Digital ipeps is further enhanced by the use of Real VNC that allows for the creation of ciphered user communications. Supports both IPV4 and IPV6 addreses.

USB and Virtual media support

To transfer files from remote users to controlled computers, the AdderLink Digital ipeps has been engineered to act as a conduit through which data can be passed. Files can be transferred via IP onto the Digital ipeps and onto the target computer by means of a USB virtual media port.

Power control through RS232 serial interface

The AdderLink Digital ipeps has an RS232 port to allow communication to devices like power switches, allowing remote rebooting of the target computer.

Choice of power source

The AdderLink Digital ipeps can either be powered from two USB cables or independently from an external 5V power source.

User management

The AdderLink Digital ipeps can create up to 16 user profiles with defined access rights. The unit can be accessed by up to 4 users at any one time.

Remote gateway to AdderLink Infinity

The AdderLink Digital ipeps can be used as a remote gateway into the Adderlink Infinity system by connecting it into an AdderLink Infinity reciever unit. This will allow users to access any computer on the Adderlink Infinity network with their normal username and passwords from any location including mobile devices.
