USB & HSMI 4k@60hz over CAT5/6 KVM extender
4KEX100-KVM

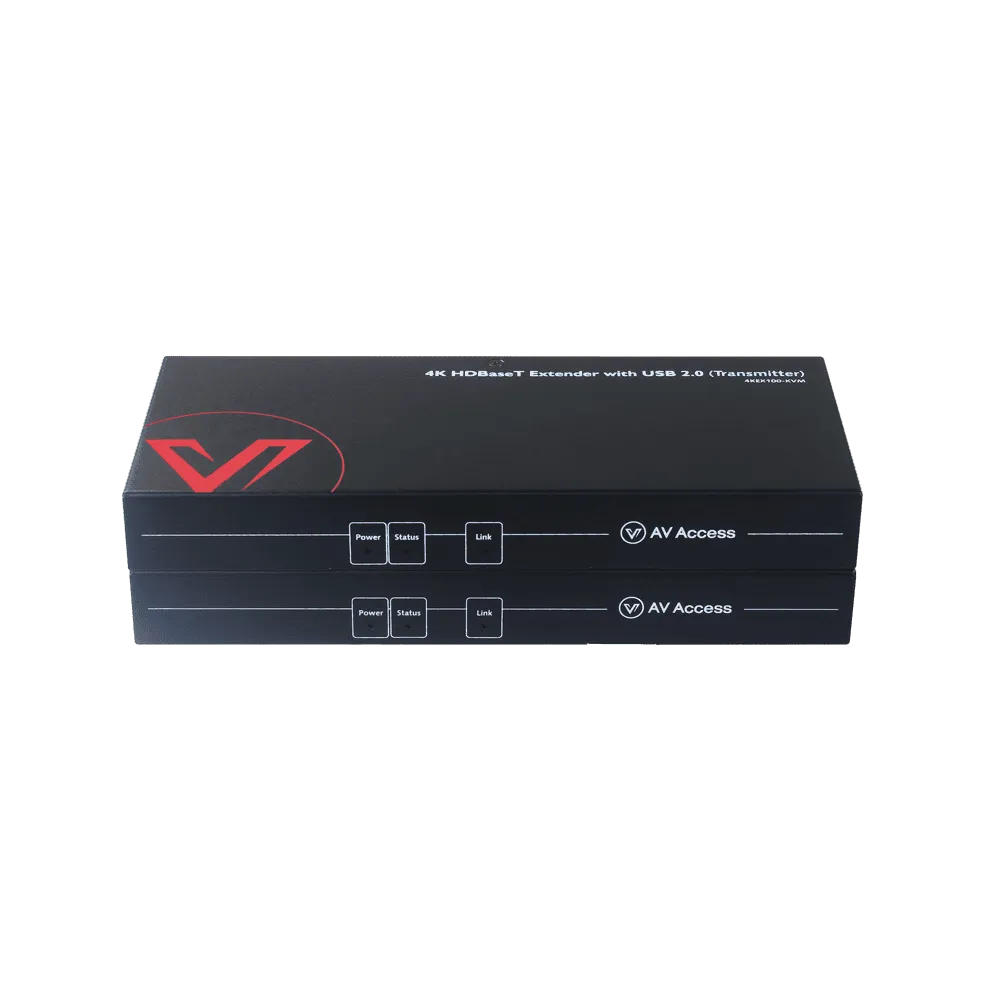

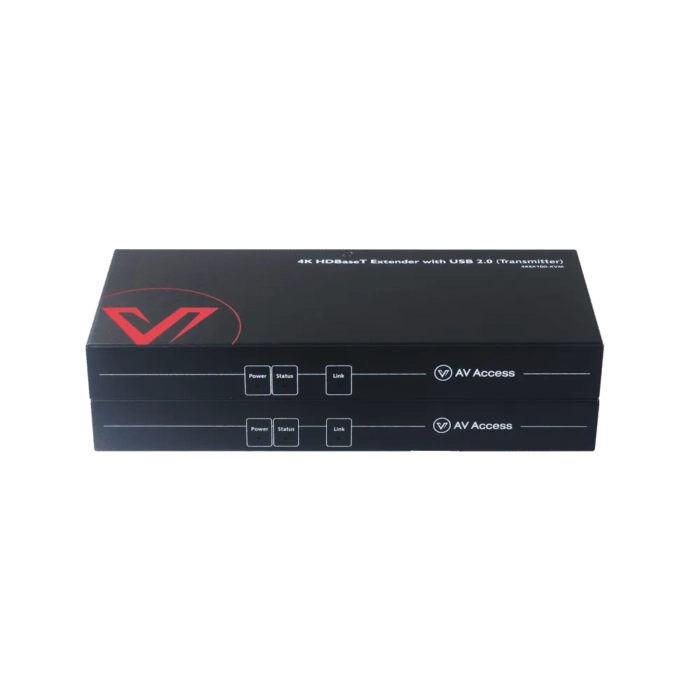

4KEX100-KVM AV Access 4K HDMI KVM Extender, 100m/330ft HDBaseT Extender w/ 4-Port USB 2.0

£259.99 inc VAT

HDMI Extender



Your Content Goes Here

4K UHD & Zero Latency:
Transmits 4K@60hz HDMI signal up to 100m/330ft over single CAT6/7 cable, along with stereo audio and USB 2.0 extension. Also supports 1080P@120hz, ideal for PC game control.

USB 2.0 up to 480Mbps:
1x USB host port on the transmitter, 4x USB device port on the receiver; easily control remote PC/NVR with keyboard, mouse and other USB 2.0 peripherals.

Bi-Directional Stereo/RS232:
This HDBaseT 2.0 extender supports bi-directional 3.5mm stereo pass-through and RS232 pass-through; also supports one-way PoH. Built-in DIP switch for EDID management.

Highly Reliable:
Certificated by CE, FCC. Built-in surge/lightning protection. Superior ESD protection. Comes with mounting ear for easy installation







SKU: 4KEX100-KVM Categories: , , , , , , , Tags: , ,

Description

4KEX100-KVM is a high-end 4K KVM extender over HDBaseT 2.0. It offers the distribution of 4K@60Hz UHD video, analog stereo, power, RS232 and USB 2.0 up to 100m/330ft over a single CAT6 or above cable. It also supports 1080P@120hz, ideal for PC game control. Additional features include bi-directional 3.5mm stereo pass-through, independent DIP switch for EDID management, etc. This HDMI KVM extender is ideal for homes, offices, control centers, video surveillance centers, conference rooms, schools, etc.
Notes:
1. This product is a transmitter and receiver kit. We don’t sell them separately.
2. One transmitter can work with only one receiver.
3. This extender does not support HDCP.
4. When connect USB devices to the extender, please make sure the total power consumption of these devices is less than 5V/0.5A.

Features

  • Via Cat 6/6a/7 cables, 4Kx2K@60Hz output up to 100m/330ft, 1080P@60Hz up to 100m/330ft
  • Via Cat 5e cable, 4Kx2K@60Hz output up to 90m/300ft, 1080P@60Hz up to 100m/330ft
  • HDMI 1.4 with 4k@60Hz (chroma sub-sampling 4:2:0 8-bit only) and HDBT 2.0 compliance
  • One-way POH, TX (PSE) with PSU to power both TX and RX (PD)
  • USB 2.0 pass through, USB-Host connector built in TX and 4 x USB-Device connector built in RX
  • High-speed USB 2.0, up to 480Mbps, pass through over HDBaseT up to 100m/330ft
  • Bi-directional Analog Stereo, and RS232 pass-through over HDBaseT
  • Independent DIP switch for EDID management
  • Does not support HDCP

Specifications

Transmitter

Video
Input Signal Type HDMI 1.4 with 4K
Input Resolution Support 4096×2160@24/25/30/50/60Hz, 3840×2160@24/25/30/50/60Hz, 1920×1080/120Hz, 1080P, 1080I, 720P, 576p, 576i, 480p
Maximum Pixel Clock 297MHz
Output Signal Type HDBT 2.0
Output Resolution Support 4096×2160@24/25/30/50/60Hz, 3840×2160@24/25/30/50/60Hz, 1920×1080/120Hz, 1080P, 1080I, 720P, 576p, 576i, 480p
Audio
Audio input 3.5mm Mini jack, stereo
Audio output 3.5mm Mini jack, stereo
Control
Control method 1x RS232, 1x USB-Host;
General
Operating Temperature 0°C to 45°C (32°F to 113°F)
Storage Temperature -20°C to 70°C (-4°F to 158°F)
Humidity 10% to 90%, non-condensing
ESD Protection Human-body Model:±8kV (Air-gap discharge)/

±4kV (Contact discharge)
Surge Protection Voltage: ±1 kV(Ten times respectively for the positive and negative voltage)
Electrical Fast Transient/Burst Data communication cord: 1 kVPower cord: 2 kV
Power Supply DC 12V 2A
Power Consumption(Maximum) ≤12 W (pair)
Device Dimensions (W x H x D) 210mm x 25mm x 90.2mm /8.27’’ x 0.98’’ x 3.55’’
Product Weight 0.44kg/0.97lb

Receiver

Video
Input Signal Type HDBT 2.0
Input Resolution Support 4096×2160@24/25/30/50/60Hz, 3840×2160@24/25/30/50/60Hz, 1920×1080/120Hz, 1080P, 1080I, 720P, 576p, 576i, 480p
Maximum Pixel Clock 297MHz
Video
Output Signal Type HDMI 1.4 with 4K
Output Resolution Support 4096×2160@24/25/30/50/60Hz, 3840×2160@24/25/30/50/60Hz, 1920×1080/120Hz, 1080P, 1080I, 720P, 576p, 576i, 480p
Audio
Audio input 3.5mm Mini jack, stereo
Audio output 3.5mm Mini jack, stereo
Control
Control method 1x RS232, 4x USB Device
General
Operating Temperature 0°C to 45°C (32°F to 113°F)
Storage Temperature -20°C to 70°C (-4°F to 158°F)
Humidity 10% to 90%, non-condensing
ESD Protection Human-body Model:±8kV (Air-gap discharge)/

±4kV (Contact discharge)
Surge Protection Voltage: ±1 kV(Ten times respectively for the positive and negative voltage)
Electrical Fast Transient/Burst Data communication cord: 1 kVPower cord: 2 kV
Power Supply DC 12V 2A
Power Consumption(Maximum) ≤12 W (pair)
Device Dimensions (W x H x D) 210mm x 25mm x 90.2mm /8.27’’ x 0.98’’ x 3.55’’
Product Weight 0.46kg/1.01lb

Package Contents

  • Transmitter 4KEX100-KVM x 1
  • Receiver 4KEX100-KVM x 1
  • 12 VDC 2A Power Supply x 1
  • Phoenix Male Connector (3.5 mm, 3 pins) x 2
  • USB 2.0 Type-B to Type-A Cable (L=1.5m) x 1
  • Mounting Brackets (Pair, with Screws) x 2
  • User Manual x 1
