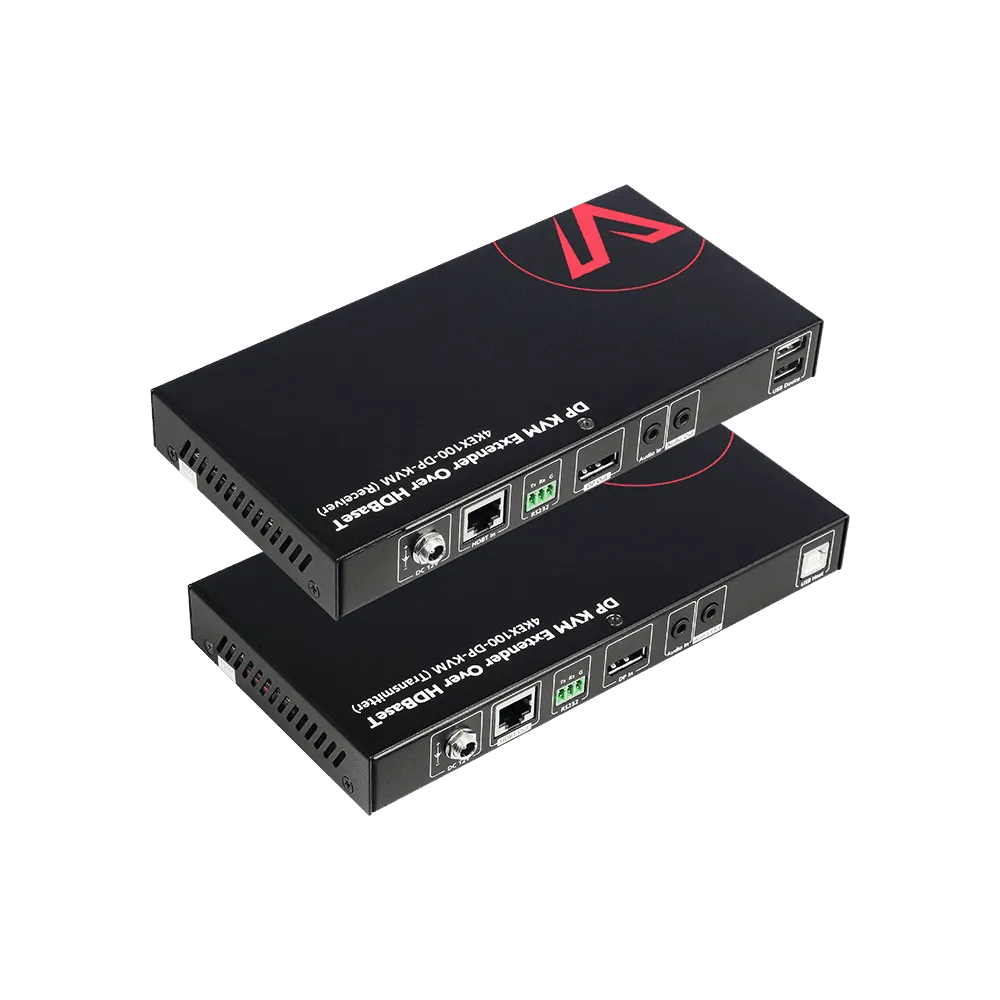

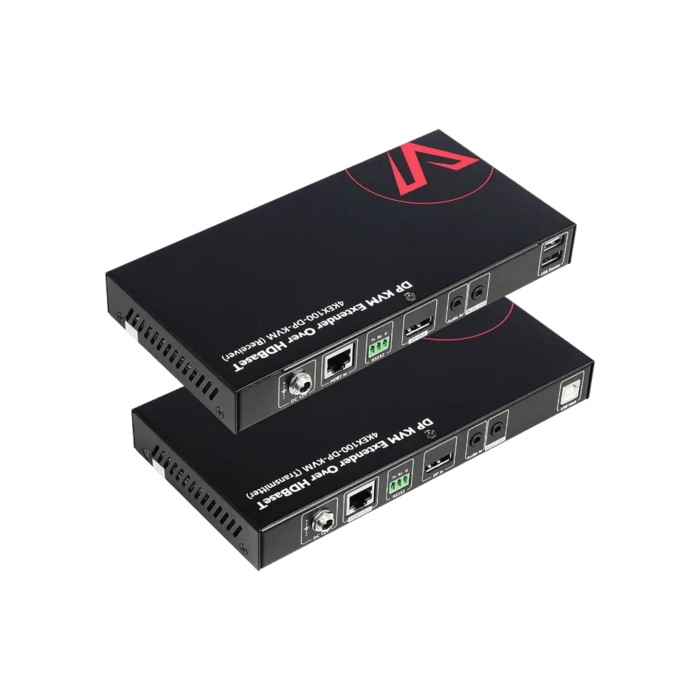

4KEX100-DP-KVM AV Access DP KVM Extender Over HDBase-T

£299.00 inc VAT

AV Access 4KEX100-DP-KVM is an HDBaseT KVM extender is designed with DisplayPort 1.2 interface. Supporting up to 4K@30Hz (4:4:4) resolution, it can extend ultra HD image up to 100m/330ft with zero signal loss or delay. It also supports 1080P@120hz, ideal for PC game control. HDBaseT KVM extender is designed with DisplayPort 1.2 interface. Supporting up to 4K@30Hz (4:4:4) resolution, it can extend ultra HD image up to 100m/330ft with zero signal loss or delay. It also supports 1080P@120hz, ideal for PC game control. With 48V PoE integrated inside, this DisplayPort KVM extender only requires one power supply connected to the transmitter to power both units. Its 12V power supply is secured with a screw-on connector to prevent the power from being accidentally disconnected.

Diagram Connection

Manual

Description

4KEX100-DP-KVM is AV Access’s newest 4K DisplayPort extender with KVM. It offers the distribution of 4K@30Hz UHD video, analogue stereo, power, RS232, and USB 2.0 up to 100m/330ft over a single CAT6 or above cable. It also supports 1080P@120hz, ideal for PC game control. Additional features include bi-directional 3.5mm stereo pass-through, automatic EDID management, one-way PoE, etc. This DisplayPort KVM extender is ideal for homes, offices, control centres, video surveillance centres, conference rooms, schools, etc.
Notes:
1. This product is a transmitter and receiver kit. We don’t sell them separately.
2. One transmitter can work with only one receiver.
3. When connect USB devices to the extender, please make sure the total power consumption of these devices is less than 5V/0.5A.
  • Slim appearance and space saving
  •  One way PoE, transmitter supplies the power for receiver
  • Via Cat 6a/7 cable, 4Kx2K@30Hz or 1080P@60Hz output up to 100m.
  • Via Cat 5e/6 cable, 4Kx2K@30Hz output up to 90m, 1080P@60Hz up to 100m
  • DP 1.2 supported, up to 4k@30Hz and HDCP 1.4 compliance
  • Supports Bi-directional stereo audio, RS232 and EDID pass through over HDBaseT
  • USB 2.0 pass through over HDBaseT, with USB-HOST built in transmitter and USB-DEVICE built in receiver.
  • All connectors in one side for easy installation
Technical
Video Signal Type DP1.2 with HDCP1.4
Audio Format L/R channel PCM 2.0
Input/Output Resolution Support 640×4808, 800×6008, 1024×7688, 1280×7208, 1280×7688, 1280×8008, 1280×9608, 1280×10248, 1360×7688, 1366×7688, 1440×9008, 1600×9008, 1600×12008, 1680×10508, 1920×12008, 1920×12008, 2560×14408, 2560×16008, 3840x2160P5, 1920×10809Note: 5 = at 30 Hz, 8 = at 60 Hz, 9 = 120Hz
General
Operating Temperature 0°C to 45°C (32°F to 113°F)
Storage Temperature -20°C to 70°C (-4°F to 158°F)
Humidity 10% to 90%, non-condensing
ESD Protection ±8kV (Air-gap discharge)/±4kV (Contact discharge)
Surge Protection Voltage: ±1 kV
Power Consumption(Maximum) ≤14.2W (Pair)
DP Cable length 5m (Max)
Device Dimensions (W x H x D) 200 mm × 25 mm ×100 mm7.91” x 0.99” x 3.95”
Product Weight Transmitter: 0.5kg/1.10lbReceiver: 0.5kg/1.10lb

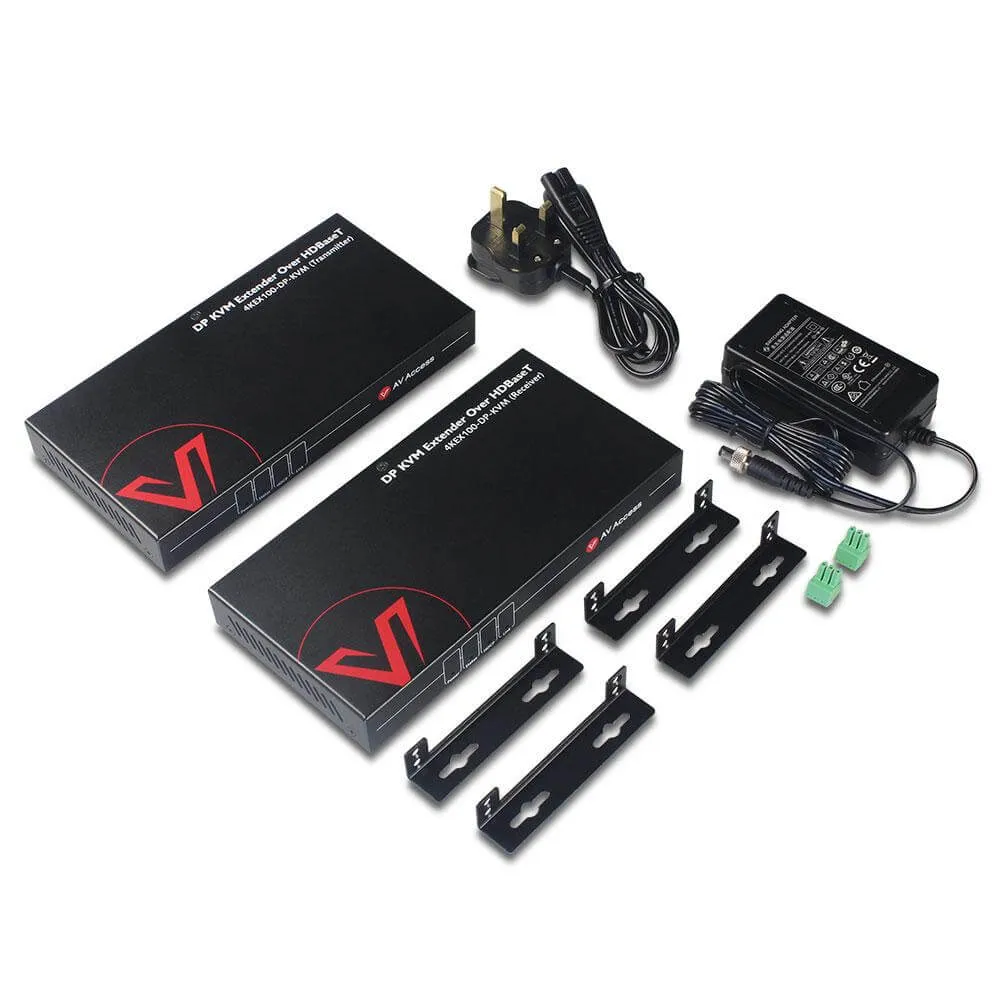

  • Transmitter 4KEX100-DP-KVM x 1
  • Receiver 4KEX100-DP-KVM x 1
  • Power Adapter (DC 12V 2A) x 1
  • Phoenix Male Connector (3.5mm 3 Pin) x 2
  • USB 2.0 Type-B to Type-A Cable (L=1.5m) x 1
  • Mounting Bracket (with Mounting Screws) x 4
  • User Manual x 1
